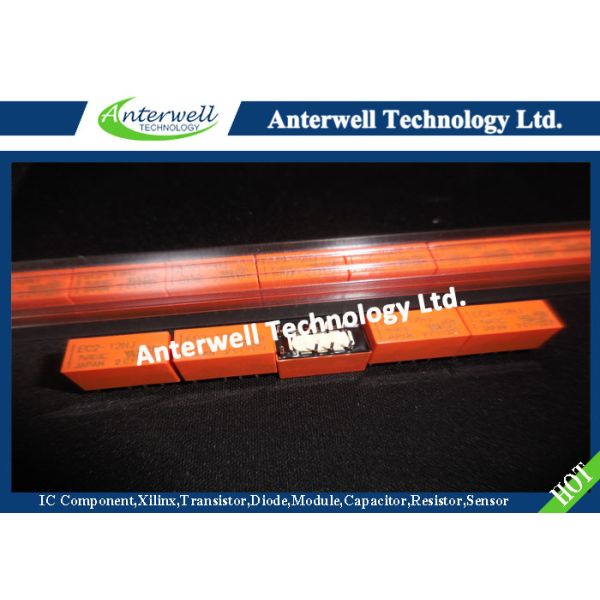

MINIATURE SIGNAL RELAY

EC2 SERIES

COMPACT AND LIGHTWEIGHT, SMALL MOUNTING SIZE, HIGH BREAKDOWN VOLTAGE

DESCRIPTION

The EC2 series has reduced mounting space but sustained high-performance of NEC EA2 series. Furthermore, it complies with 2500 V surge-voltage requirement of Bellcore specification.

FEATURES

Compact and light weight
2 form c contact arrangement
Low power consumption
Reduced mounting space : 15 mm × 7.5 mm
High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs)
Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident
UL recognized (E73266), CAS certified (LR46266)

APPLICATIONS

Electronic switching systems, PBX, terminal equipment, telephone systems.

OUTLINE DRAWING AND DIMENSIONS PAD LAYOUT (bottom view)

PACKAGE

Dimensions of Relay Tube (Unit : mm)
